Electrolyte Analyzer, EASYLYTE Plus, MEDICA

Store/DIAGNOSTICS PRODUCTS/Laboratory Equipment

Product Details

Weight: 5.80 kg

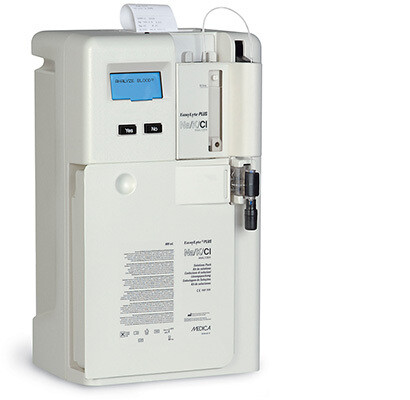

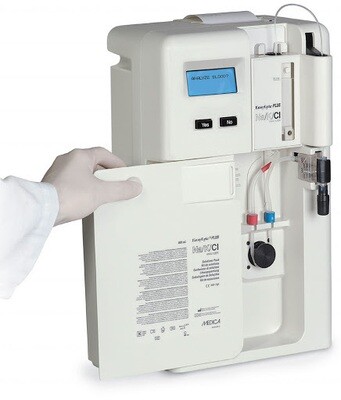

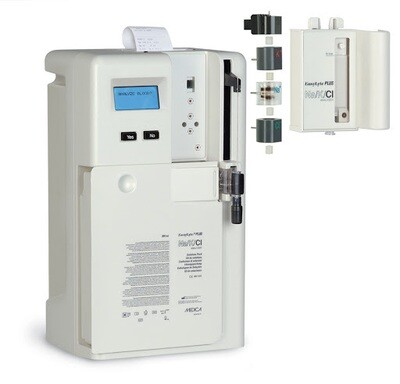

Medica Corporation’s EasyLyte^{® Plus} analyzer is a completely automated, microprocessor-controlled electrolyte system that uses ISE (Ion Selective Electrode) technology to make electrolyte measurements. The EasyLyte Plus measures combinations of Na⁺, K⁺, Cl^–, and Li⁺ in whole blood, serum, plasma, or urine.

EasyLyte incorporates state-of-the-art electronics and an innovative ergonomic design that differentiates it significantly from competitors. The analyzer also stores quality-control data that is easily accessible. Patient histories are immediately retrievable for evaluation.

EasyLyte analyzers combine simple yes/no prompted operation, low maintenance, and high reliability into one economical design.

Over 40,000 EasyLyte analyzers have been sold.

CLIA Classification:	Moderate Complexity
Sample Type:	Whole Blood, Serum, Plasma or Urine
Sample Size:	100 µL Whole Blood, Serum, Plasma, 60 µL capillary or 400 µL diluted (1:10) Urine
Method:	Direct measurement by Ion Selective Electrode (ISE)
Measurement Range:	Blood Urine Na+: 20 – 200 mmol/L Na+: 25 – 1000 mmol/L K+: 0.2 – 40 mmol/L K+: 1.0 – 500 mmol/L Cl-: 25 – 200 mmol/L Cl-: 25 – 500 mmol/L Li+: 0.2 – 5.0 mmol/L
Display Resolution:	Na+: 0.1 mmol/L , K+: 0.01 mmol/L , Cl- : 0.1 mmol/L, Li+: 0.01 mmol/L
Analysis time (blood)	55 seconds
Urine Mode	Yes
Urine Mode	90 seconds
EasySampler	Yes
Capillary Samples	Yes
Data Storage:	Patient results — up to 128 samples QC results — up to 20 each Normal, Low, and High
Calibration:	Automatic or On-Demand
Output:	128 x 64 pixel graphic display, 24 column thermal printer, Serial port (RS-232), EasySampler port
Ambient Conditions:	15–32oC (60–90oF), <85% humidity
Power:	100-240 VAC 50/60 Hz, 0.8A
Size & Weight:	9.5”W x 16.5”H x 8.0”D (24 cm W x 42 cm H x 20 cm D) 13 lbs. (5.8 kg)

Warranty: 1 year on parts and life time on Labor within Caraga Region

We Offer: Reagent Tie-up or Rental (Subject for Quotation and Agreement)

(+63) 9338110241 / 9177095557
